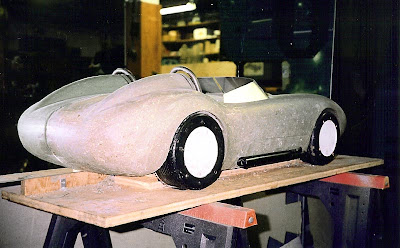

1-3) Other views of the original 1/4 scale half-model against a mirror. The surface of the model was made with a thin layer of modeling clay, from an art supply, covering a skeleton which was made by gluing Styrofoam blocks together and shaping them with a "cheese grater". The outlines for the body came from 1/4 scale drawings of the chassis and body. The wooden wheels/tires were made on the lathe. The windshield, roll bars and exhaust pipe were fabricated from bits of sheet-metal, rod and tubing, just to get an idea of how the whole package might look. The full scale tube-chassis can be seen in the back-ground.
4) The plaster mold, which was cast in sections, inside of a plywood box, so it could come apart without serious damage to the clay model.
